新产品

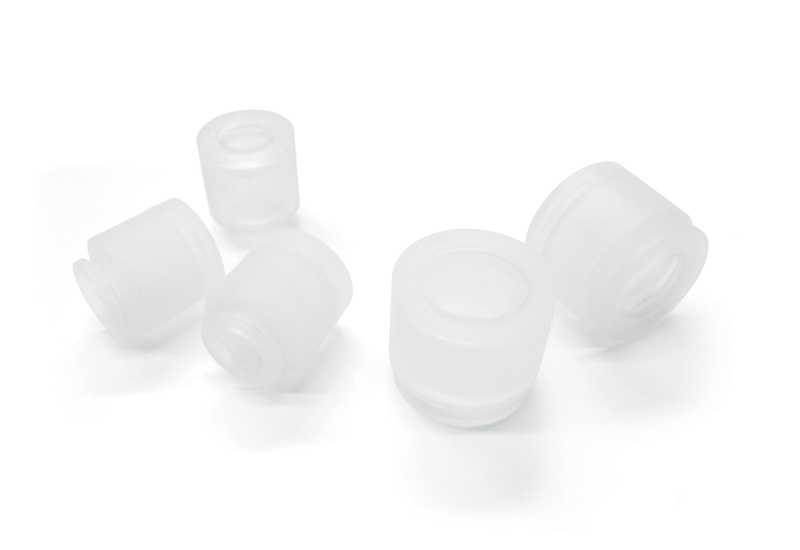

Special vacuum cups for the pharmaceutical sector

Special vacuum cups for the pharmaceutical sector

These vacuum cups have been designed and manufactured for the pharmaceutical sector.
They are used for handling syringes that are filled with liquid and capped during their transfer, making use of the internal passages on the special supports (not supplied) on which they are fitted.
Due to their specific use, they are produced only in different hardness silicone compounds, according to FDA regulations.
Product codes: 011320S70SHFDA 011320SFDA 011420S70SHFDA 011720SFDA 011821S70SHFDA 012220S70SHFDA 012220SFDA 012720S70SHFDA 012720SFDA

1.66.1
TraceParts上的CAD文件
Image zoom
top next

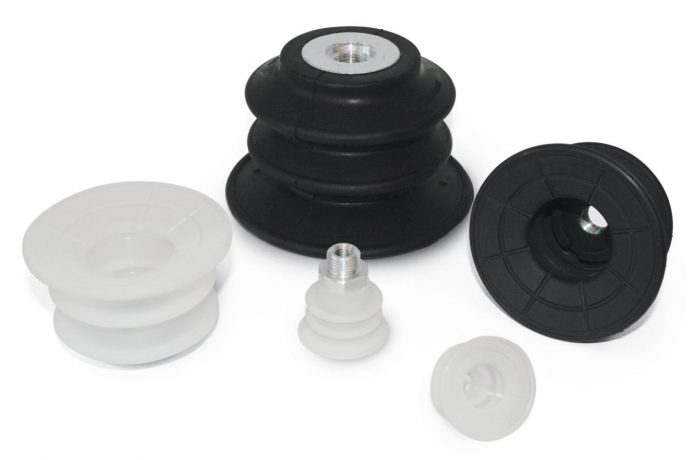

Vacuum cups with two bellows for heavy-duty packaging

Vacuum cups with two bellows for heavy-duty packaging

Specifically designed vacuum cups for tripping and handling particularly heavy boxes and cardboard packaging in general.
Their thick, sturdy lip absorbs tears and sudden accelerations, typical of robotised movements. The double bellows enables improved adaptability to the gripping surface, even if not perfectly perpendicular to the axis of the vacuum cup, and can recover evident unevenness of the loads to be lifted.
The supports, all made of anodised aluminium, are equipped with a male or female central threaded pin to allow suctioning and clamping to the automation. The vacuum cups can be fitted on them without the aid of adhesives.
To replace, simply request the single vacuum cup indicated in the table in the desired compound.
Product codes: 013527 015240 0008394 0008395 0008366 0008364 0835271/8 0852401/8 083527 085240 013527 015240 0008396 0008397 0008392 0008393 0835271/8F 0852401/8F 083527F 085240F 087543SR 0811073SR 0008373 0008372 0008376 0008375 087543M 0875433/8M 0811073M 08110731/2M 087543SR 0811073SR 0008374 0008377 0875433/8 08110731/2

Image zoom
top next
Bellows cups with supports for gripping flow packs

Bellows cups with supports for gripping flow packs

Thanks to their specific conformation and flexibility, the vacuum cups illustrated and described on this page are especially suitable for installation on automatic, high production machines in the packaging sector, and for the gripping and handling of flow packs.
The vacuum cups are available in different compounds for food use and can be cold fitted on their special supports without the aid of adhesives. Upon request, these cups can be provided upon request in minimum quantities and in other special compounds, listed on top, to be defined in the order.
Product codes: 012030S 013045S 000818 0008127 082030S 083045S

1.52
TraceParts上的CAD文件
Image zoom
top next

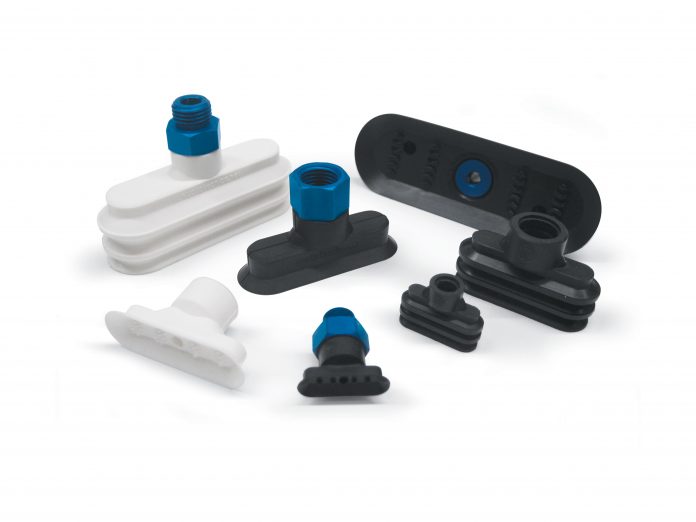

Flat and bellows elliptical vacuum cups with supports

Flat and bellows elliptical vacuum cups with supports

Complete range of flat elliptical vacuum cups, normally used for gripping, handling and clamping cardboard cases and boxes, wood shingles, small ceramic or brick tiles, iron or stainless steel profiles, sheets and anything else present on long, narrow gripping surfaces.
Instead, bellows elliptical vacuum cups, in addition to having the same function as the flat cups described above, are able to adapt to the gripping plane, even if not perfectly perpendicular to the axis of the vacuum cup, and can recover evident unevenness of the loads to be lifted.
They are normally available in the three standard compounds but can be supplied in special compounds listed on top and in a minimum amount to be defined in the order, upon request.
Both items can be supplied with or without automation fastening support. Upon request, special non-rotating vacuum cup holders on which to assemble them are able to prevent their rotation during use.
Product codes: VOP0824SR VOP1030SR VOP1236SR VOP1545SR VOP2060SR VOP2575SR VOP2885SR VOP35100SR 0008344 0008346 0008404 0008402 VOP0824 VOP1030 VOP1236 VOP1545 VOP2060 VOP2575 VOP2885 VOP35100 0008343 0008345 0008405 0008403 VOP0824F VOP1030F VOP1236F VOP1545F VOP2060F VOP2575F VOP2885F VOP35100F VOS0825 VOS1545 VOS2575 VOS0825M VOS1545M VOS2575M VOS0825F VOS1545F VOS2575F

Image zoom
top next
Single-stage and multi-function vacuum generators, MSVE series

Single-stage and multi-function vacuum generators, MSVE series

The vacuum generators of this new series can fully drive a negative pressure gripping system. By means of coaxial shutters, the original compressed air supply system feeds large quantities of air to both the ejectors and the ejection system, thereby ensuring faster gripping and release of the load. These vacuum generators are equipped with single-stage ejectors, are powered by low pressure (max. 4 bar), and feature an extremely high emptying speed in relation to their suction flow rate. All this allows for increasingly faster high-performance work cycles. Two micro solenoid valves manage the compressed air supply to the vacuum ejector and adjustable discharge blow off. The intensity and duration of the latter are managed through a screw-type flow regulator. The check valve built into the suction connector maintains the vacuum in the event of a power outage. A digital vacuum switch, equipped with a display and commutation LED, manages the compressed air supply and provides a signal to start a cycle under safety conditions. An anodised aluminium distributor with vacuum connectors has an integrated suction filter that can be easily inspected. By activating the compressed air power micro solenoid valve, the generator creates vacuum for use. As soon as the set maximum value is reached, the digital vacuum switch acts on the electric coil of the micro solenoid valve and stops the air supply, reactivating it when the vacuum falls below the minimum level.
Besides maintaining the vacuum level within set safety values (hysteresis), this modulation allows for considerable compressed air savings. A second signal from the vacuum switch (also adjustable and independent with respect to the first) can be used to start the cycle when the vacuum level reached is suitable for use. Once the work cycle is completed, the micro solenoid valve that supplies compressed air to the generator is deactivated while, at the same time, the ejection solenoid valve is activated for quick restoration of the atmospheric pressure upon use. The MSVE vacuum generators can be installed in any position and are suitable for suction gripping systems, handling metal sheets, glass, marble, ceramics, plastic, cardboard, wood, etc. and, in particular, for the industrial robotics sector, where equipment with excellent performance and limited weight and bulk are increasingly required.
Product codes: MSVE3 MSVE5

Image zoom
top next
Vacupredator vacuum cups for gripping bags, packs and flexible containers

Vacupredator vacuum cups for gripping bags, packs and flexible containers

For the gripping of bags, packs and flexible containers in paper or plastic, containing powders, granulated products, loose or liquid products. These new vacuum cups have been designed and manufactured to safely grip even the most difficult and irregular packages. Made of anodised aluminium and equipped with a slotted plate inside them to allow flexible containers to perfectly adapt to the cup, as well as a special foam rubber seal which, following the inevitable creases that form on flexible containers during gripping, prevents perimeter vacuum losses.
They are especially suitable for gripping flow packs, flexible containers for intravenous therapy, bags of sweets or other similar products, plastic bags of granulated products, of cement, sugar or flour, etc.
The lifting force was calculated considering a level of vacuum of at least -75 Kpa, the total surface enclosed within the seal and a factor of safety 3.
Product codes: VP12OF VP12SB VP12NF VP22OF VP22SB VP22NF VP0612OF VP0612SB VP0612NF VP0912OF VP0912SB VP0912NF VP0921OF VP0921SB VP0921NF VP1520OF VP1520SB VP1520NF VP2030OF VP2030SB VP2030NF VP3040OF VP3040SB VP3040NF

Image zoom
top next
Lubrificated rotary vane vacuum pumps, RVP series

Lubrificated rotary vane vacuum pumps, RVP series

The pumps in this new series are single-stage, rotary vane and with oil-bath lubrication with recycling. The implementation of cutting edge construction techniques and the use of hi-tech, latest generation materials has allowed for the achievement of high standards of quality, performance, duration and low cost of use. The resulting technical features include:
- High pumping speed in the field of absolute pressure between 850 and 0.5 mbar
- Extremely low noise output
- Low operating temperatures
- No pollution
- Low maintenance
The pumps are driven by an electric motor, coupled by means of an elastic transmission joint (not including RVP 15), in compliance with IEC International Standard 60034 requirements for rotating machines and European Directives for Low Voltage (LV) 2006/95/EC, for Electromagnetic Compatibility (EMC) 2004/108/EC, for the limitation of use of hazardous substances RoHS 2011/65/CE and Machine Directive 2006/42/EC for CE marking.
With the exception of electric motors with power lower than 0.75 KW, the efficiency class corresponds to IE3 = Premium Efficiency, with protection degree IP 55, Tolerance of nominal Voltage ± 10% and Class of Insulation F.
A centrifuge fan fitted on the pump shaft ensures a suitable air flow for optimal pump body and radiator cooling (forced surface cooling).
A capacious oil recovery tank located on the pump outlet and equipped with microfibre deoiling cartridges has the function of smoke filtering system and silencer. A special built-in ball cock valve allows for the recovery of oil retained by cartridges. The oil filter, except mod. RVP 15 and 21 pumps, are installed as standard on all.
The oil contained in the system lubricates, cools and seals rotating and fixed pump parts. The check valve on the suction line is an integral part of the pump and is standard while a filter suitable for trapping any suctioned impurities can be supplied upon request.
All pumps except mod. RVP 15 and RVP 21, are supplied standard with a gas ballast valve, which permits high water vapour compatibility. Instead, for mod. RVP 21, the ballast valve can only be installed upon request.
The above described product devices combined with strong, compact construction make RVP series vacuum pumps especially suitable for continuous and heavy-duty use.

7.29
TraceParts上的CAD文件
Image zoom
top next
Digital vacuum and pressure switches with two-colour display

Digital vacuum and pressure switches with two-colour display

These devices are also enclosed within a robust ABS container. They are carefully calibrated and at compensated temperature, ensuring high-precision measurement values. Detected values are viewed on the main two-colour (red and green) display and programmable by the user to set different conditions. Setting values are easily viewable on a secondary display within the command panel. Two luminous indicators pertaining to outlets 1 and 2 indicate the switching status of both digital and the analogue output signals. The switching outputs are completely independent.
The switching points within the scale values, including hysteresis, are easily programmable via the buttons located on the control panel. Additional functions are also programmable, such as comparison between two values, NO and NC contacts, choice of measurement unit, programmed value and function blocking, etc. The connection to the vacuum may be established by means of a male G 1/8" or female M5 double threading connection. It is possible to establish an electric connection by means of a removable, rapid installation data cable, supplied as standard. Digital vacuum and pressure switches are suitable for measuring and controlling dry air and non-corrosive gases. They are recommended in all those cases that require a signal when a certain level of vacuum is reached set for safety, for starting a cycle, for checking the cup grip, etc. Moreover, the hysteresis function allows managing the vacuum generator compressed air supply, allowing considerable energy saving.
Product codes: 124010 124012 124020 001240 001241 001242 001243

Image zoom
top next
Digital vacuum switches

Digital vacuum switches

Changes the shape of these digital vacuum switches with respect to those previously described, from cylindrical to parallelepiped. However, the container in which they are enclosed remains in ABS and is also especially compact and extremely light to allow for its installation on board automatisms and near use.
These carefully calibrated devices are able to provide very accurate measurement values. The detected values are shown on the display, making it unnecessary to use a vacuum gauge.
The panel includes two LED indicators, one green and one red, which indicate the switching status of the two digital output signals. The switching outputs are completely independent. The switching points within the scale values, including hysteresis from 0 to 100% of the set value, are easily programmable via the buttons located on the control panel.
Other additional functions can be configured, such as the comparisons between values, NO and NC contacts, the choice of the units of measure, the blocking of functions and programmed values, etc.
The vacuum connection can be made by means of a G 1/8” male or M5 female double threading connection.
Electrical connection for item 12 30 10 is push-in with a M8-4 pin threaded jack. A connection cable can be provided in PUR upon request with corresponding axial or radial connector.
Instead, item 12 30 10 A already has an integrated PUR, 2-metre long connection cable. The adjustment range of vacuum switch 12 30 10 is from 0 to -1 bar, with two digital PNP outputs that can be set by means of Teach-in. The adjustment range of item 12 30 10 A, while it is also between 0 and -1 bar, can instead be interfaced with external logics via a 1 to 5 volt analogue output and two digital PNP outputs.
This series of digital vacuum switches is suitable for measuring and control of dry air and non-corrosive gases. These are recommended in all cases where maximum and minimum value signalling is required, set for safety reasons, in order to start a work cycle, to control vacuum cup gripping, and so on. In addition, with the hysteresis function, it is possible to manage the compressed air supply to the vacuum generators, allowing for considerable energy savings.
Product codes: 123010A 123010

Image zoom
top next

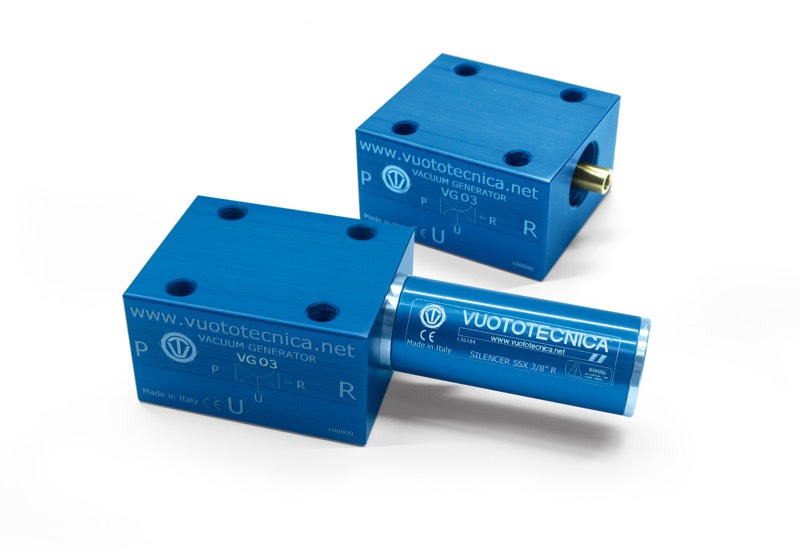

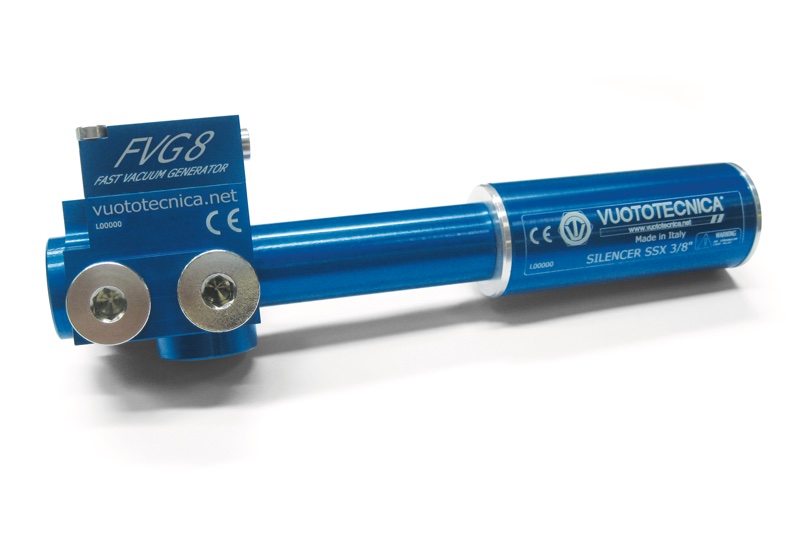

Single-stage vacuum generators VG 03, VG 03 LP and VG 05 LP

Single-stage vacuum generators VG 03, VG 03 LP and VG 05 LP

This series of single-stage vacuum generators, also based on the Venturi principle, can be supplied for optimal supply pressures of 4 or 6 bars. Thanks to their shape, they can be installed directly on the user device and used at the most suitable supply pressure, depending on the desired level of vacuum.
They have different capacities and can be used in all gripping systems with vacuum cups, for gripping and handling objects that are not very porous and on equipment with limited capacities. They are available upon request with an SSX 3/8" R high sound suppression silencer, installed on air exhaust R.
They are fully made with anodised aluminium, with brass or aluminium ejectors, depending on the items.
Product codes: VG03 VG03LP VG05LP
